Product details
1. All products provide 2 year warranty.
2. IP Rate: IP68 Structural waterproof.
3. Private Mode products
4. VDE standard outlet: standard cable length is 1 meter.
5. 316L Stainless steel material
| HG-UL-5W-SMD-R |
| Lamp parameter | Material | SS316L body+tempered glass cover+VDE rubber cable |
| length | Φ98×88mm |
| Input voltage | DC24V |

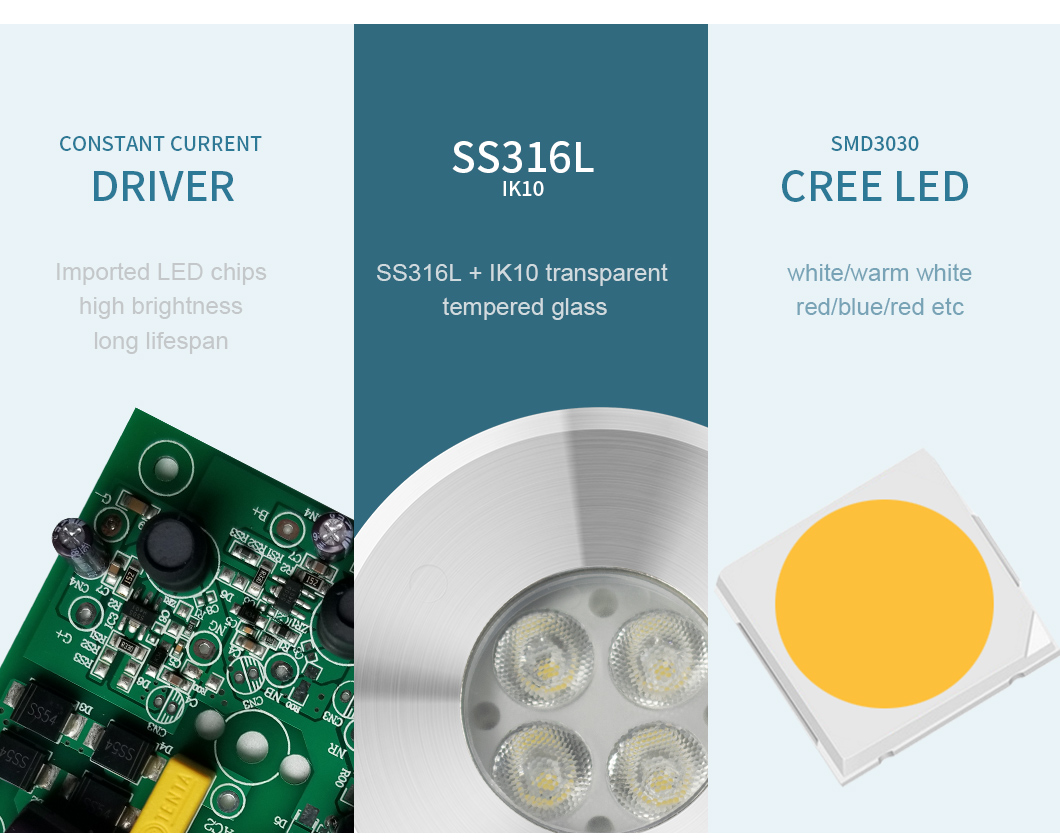

| Constant Driver | yes |
| Over-current Protection | yes |
| Wattage | 5±1W Epistar |
| Light lumen | 420LM±10％ |

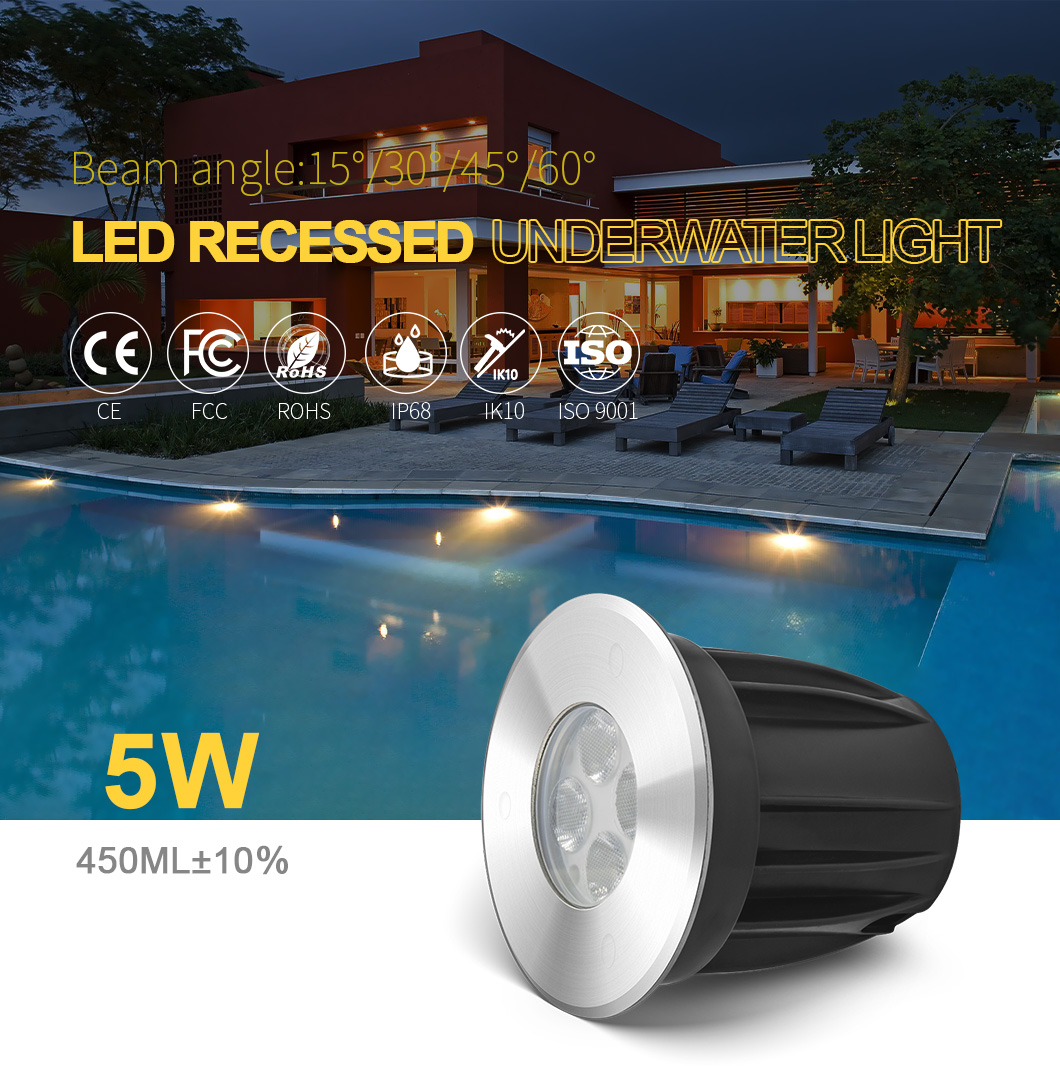

| Beam angle | 15°/30°/45°/60° |
| Color: | monochromatic |
| Wave Length (nm) | R: 620-630nm |
| G:515-525nm |
| B:460-470nm |
| Specifics | Operating Temperature (℃) | -20~40℃ |
| IP Rating | IP68 |
| Certificate | CE, RoHS,FCC,IP68,IK10 |
| Life-span | 50,000 hours |
| Warranty | 2Years |
| Underwater test lighting time(Min) | 10 | 30 | 90 | 150 | 10 | 30 | 90 | 150 |
| Light source edge temperature(℃) | 43 | 50 | 52 | 59 | 45 | 58 | 62 | 68 |
Product Features
1. High quality wafer chip Low light decay / long life / low energy consumption.
2. Customized IP68 waterproof nickel plated brass design,good anti-corrosion.
3. Integrated bead lens with uniform lighting ,no dazzling
4. LED color changing pool light with 316L Stainless steel material ,super good anti-corrosion.
5. Waterproof led light for swimming pool can adjustable angle.
Advantage
1. Reliable quality with 100% 10m depth waterproof test.

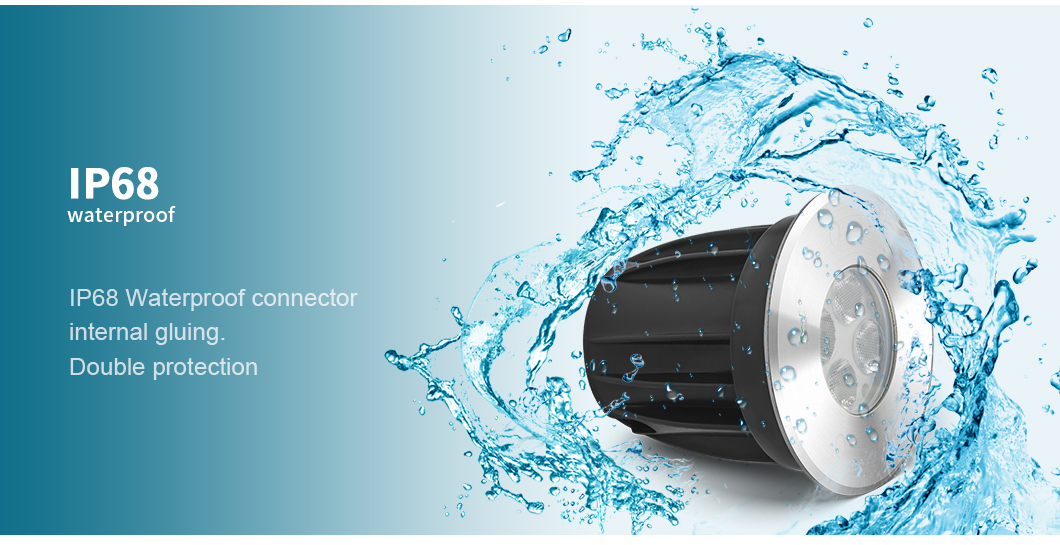

2. IP68 structure waterproof ,can long time use under water.
3. Good looking stamping SS316 rivet screws,more stable
4. with rivet screw and cover nut assembly,longer lifespan.
5. Colored pool lights underwater finished products all passed 30 steps quality inspection.
6. Swimming pool color changing lights must be 8 hours aging test and provide 2 Years warranty.
7.LED underwater pool light all passed 30 steps quality control
8 hours LED agening test,100% inspection before deliver.

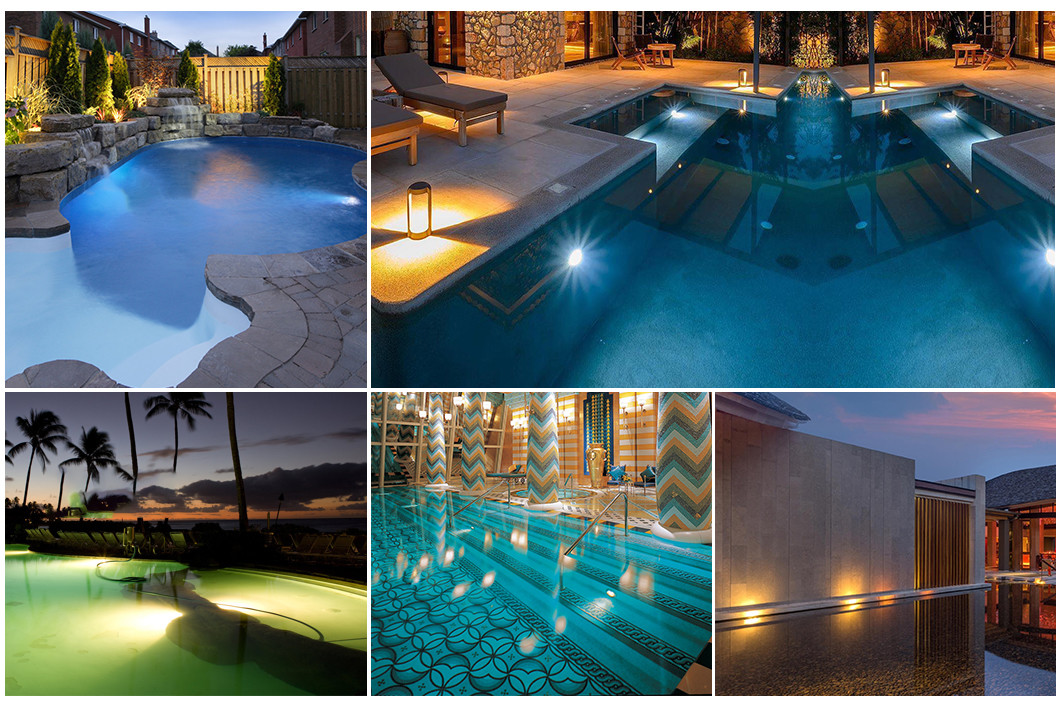

Application
(Conventional bracket) can be suitable for underwater bracket fixing or (with clamp) water pipe binding
installation method, widely used in garden pool, square pool, hotel pool, fountain and other underwater
lighting.
FAQ
Q1:How to choose the right LED energy saving lamps?
A:Low watage with high Lumen. This will save more electricity bill.
Q2: What is the advantages of LED?
A:Environmental friendly, Energy saving and Long lifespan.
Q3:The key factor that influence LED lifespan.
A:Temperature: It requires that junction temperature of LED chip should be ≤120ºC,
so the center temperature at the LED bottom of light board should be ≤ 80 ºC.
Q4: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you are urgent to get the prices,
please call us directly or leave us the messge ,we will give priority to your inquiry.
Q5: May I get samples to test quality and how long can I get them?
A: Yes, samples can be ready in 3-5 days.
Q6: What is the MOQ?
A: NO MOQ,the more you order ,the cheaper price you will get .
Q7: Can you accept small trial order?
A: Yes
Q8: Do you accept the OEM&ODM?
A: Yes, OEM/ODM acceptable
